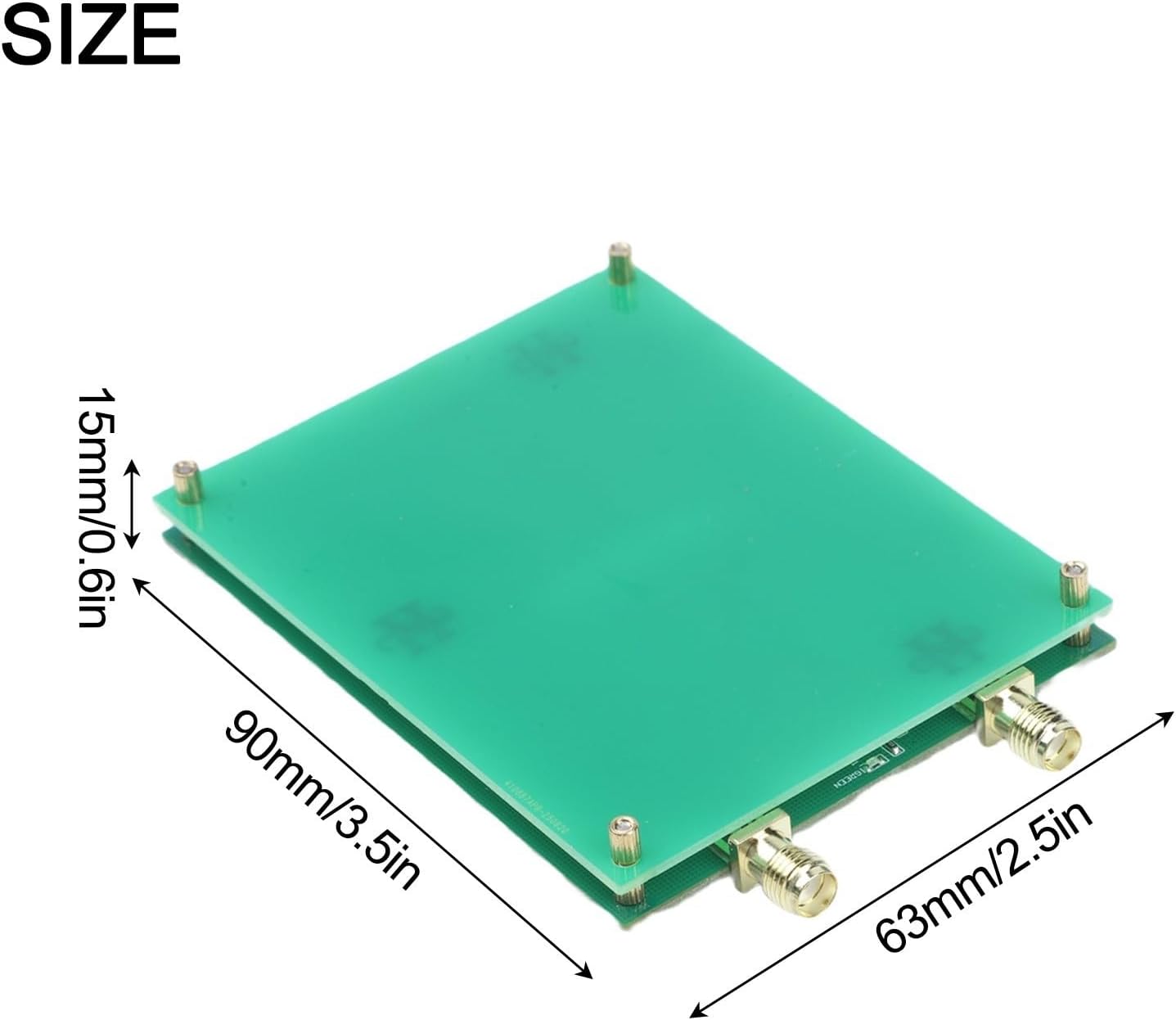

23.5-6000MHz signal generator 0.5PPM low-noise signal source touch screen

Features:The signal generator is an ultra-wideband phase-locked loop (PLL), with iegrated voltage controlled oscillator (VCO), capable of working in integer-N and fractional-N modes.With an external reference clock oscillator and loop filter, the signal generator can form a high-performance frequency synthesizer capable of synthesizing frequency ranges of 23.5MHz to 6000MHz, while maintaining superior phase noise and spurious specifications.The internal multi-channel integrated VCO covering the ranges of 3000MHz to 6000MHz and the 1-128 output frequency divider are used to realize the clock output with an ultra-wide frequency ranges. Compatible with 1.8V control logic.The characteristics of the RF signal source module are that the onboard default high-precision 25MHz 0.5ppm TCXO, the internal VCO base frequency output frequency ranges is 3~6GHz, and the base frequency is divided below 3GHz.This RF signal source module is a full touching screen frequency input, the output frequency mode is point frequency, and sweeps frequency is optional.The RF signal source adopts lead-free, 5mmx5mm, and the operating temperature ranges is extended to 40°C to 85°C.This tool can be controlled by PC, output amplitude is -4~5dBm, 4-level touching screen control.Specifications:Part Name: MAX2870 (23.5MHz-6000MHz) Signal GeneratorMaterial: ABSsize: As shownColor: As shownPower: ±5VCurrent: 0.2AModule communication protocol: for SPIOutput amplitude: - 4~5 dBmModule output frequency ranges: 23.5 MHz~6000 MHzInput/output channel: 1Working temperature ranges: - 40~85℃Power supplys interface: Type - CModule output signal: Sinusoidalinput/output interface module: for SMAItem size: 90 * 63 * 15mm / 3.5 * 2.5 * 0.6inItem weight: 60g / 2.1ouncePackage size: 130 * 84 * 45mm / 5.1 * 3.3 * 1.8inPackage weight: 105g / 3.7ouncePackage contents：1 * Signal Generator1 * Cable

• The signal generator is an ultra-wideband phase-locked loop (PLL), with iegrated voltage controlled oscillator (VCO), capable of working in integer-N and fractional-N modes.
• With an external reference clock oscillator and loop filter, the signal generator can form a high-performance frequency synthesizer capable of synthesizing frequency ranges of 23.5MHz to 6000MHz, while maintaining superior phase noise and spurious specifications.
• The internal multi-channel integrated VCO covering the ranges of 3000MHz to 6000MHz and the 1-128 output frequency divider are used to realize the clock output with an ultra-wide frequency ranges. Compatible with 1.8V control logic.
• The characteristics of the RF signal source module are that the onboard default high-precision 25MHz 0.5ppm TCXO, the internal VCO base frequency output frequency ranges is 3~6GHz, and the base frequency is divided below 3GHz.
• This RF signal source module is a full touching screen frequency input, the output frequency mode is point frequency, and sweeps frequency is optional.
• The RF signal source adopts lead-free, 5mmx5mm, and the operating temperature ranges is extended to 40°C to 85°C.
• This tool can be controlled by PC, output amplitude is -4~5dBm, 4-level touching screen control.
